Railway Signal Transmission NetworksRailway market challenges
Railway transportation mode being reliable, efficient, and, therefore, one of the most demanded ones, nowadays has to constantly evolve in accordance with the modern world’s demands. Such factors as increasing number of passengers, emerging terrorist threat, and common need to be always “online”, have outlined two major priorities for railway operators:
 Safety for passengers and staff which is provided by real-time IP video surveillance onboard and on train stations;
 Onboard entertainment by means of Wi-Fi connectivity, high-speed voice and video transmission. For these purposes, establishing of reliable and secure Ethernet and wireless networks is a must.
However, railway market features a number of critical requirements have to be met. First of all, equipment must sustain uniquely harsh environment, vibration, and shock. Consequently, it is very important that data communication equipment deployed in the Network comply with Railway Standard EN 50155.
Meeting all the requirements of the Railway market, WoMaster provides cost-saving and efficient data communication solutions on trains, train stations and along railroad tracks which allow increasing the efficiency of the rail network and, simultaneously, reducing maintenance costs.


Customized solutions and Project Pre- and after sales support
WoMaster is able to provide to its customers the best solutions implementing customized products if there are any specific requirements for Railway Network.
Customers can be sure to rely on WoMaster’s design of a complete communication network for all the possible Railway mission-critical applications, as well as on our technical support, on-time delivery and product service.

Typical applications

Data communication for railroad monitoringReal-time railroad monitoring

To monitor the real-time traffic situation and environmental conditions, it is required to build Ethernet Network with reliable back-bone switch and data communication equipment capable of sustaining severe environmental conditions, including extreme temperature variations, vibration, humidity, dust, etc.
Fanless design and -25~70゚C wide operating temperature make WoMaster’s switches a perfect choice for reliable and high quality data and video stream transmission for the real-time monitoring of railway stations and rail roads.

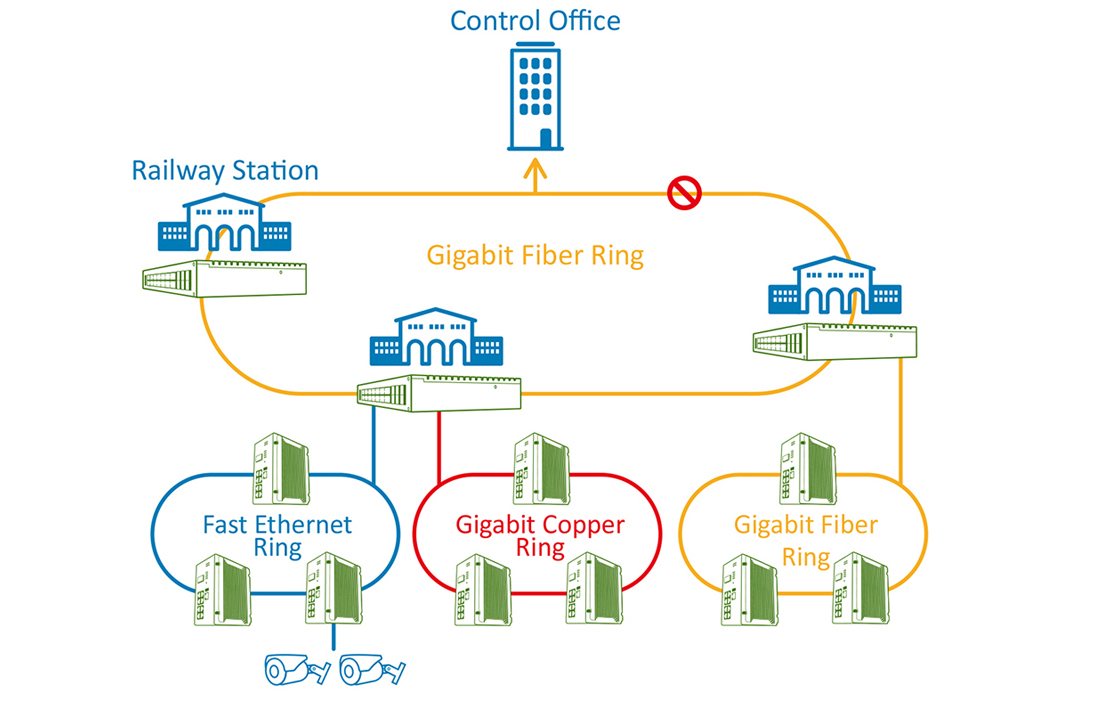

Industrial-grade din-rail switches DS620 are used for collecting the data and sending to Railway Traffic Control Center. DS620 is equipped with 20 Gigabit Ethernet ports, 4 of which are Gigabit SFP combo ports for sustainable long-distance gigabit fiber connectivity. Rackmount switches RS328-F for deployment in Control Center collect all the data from DS620 through gigabit copper and fiber ports. With Ring redundancy technology supported, RS328-F provides secure data transmission whilst advanced management and security functions make Network management convenient and effective.


Railway data communicationRailway system networks:
IP surveillance on rolling stocks and data transmission to train maintenance station
IP cameras have become essential for the rolling stock allowing railway operators to monitor the situation on-board from control centers. Modern IP technology provides high quality data, thus, demands high bandwidth of wired and wireless connectivity. WoMaster is providing a complete Railway Ethernet system solution including wired and wireless data communication equipment. As the train gets to base station, the on-board data is transferred there for further redirection to Maintenance Central Office; therefore, reliable and high performance connectivity for large amount of data communication is needed.
DP310 switches are deployed on-board and on base stations; this model is equipped with 8 af/at PoE ports, transmitting 30W Power over Ethernet
 per port  to the Wireless Access Points and IP cameras, and 2 Gigabit combo ports for uplink connection. On-board switches help to collect the IP-video streaming and send to wireless access point WA7092-M which is equipped with rugged M12 anti-vibration connectors. WA7092-M – dual radio 2.4G and 5G 2T2R wireless access points in trains and on Base stations are used for transmitting on-board data to a Base station; due to the supporting 802.11n standard, the data rate up to 150Mbs achieved. Advanced cyber security features WEP, WAP, WAP2 and MAC address filtering guarantee the highest security of the streamed wireless data. After Base stations, all the data is safely transferred to Central Maintenance Office through the Gigabit Fiber Ring.

WoMaster’s solutions let railway operators to integrate reliable, high-bandwidth and high-resilient networks which meet the requirements of operating in harsh conditions of shock, vibration, humidity, temperature extremes, and provides redundancy and data security.
